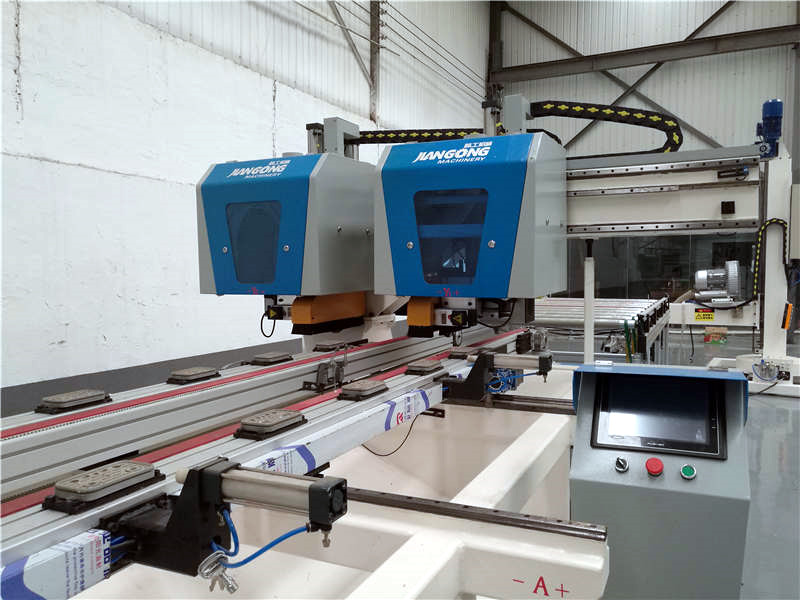

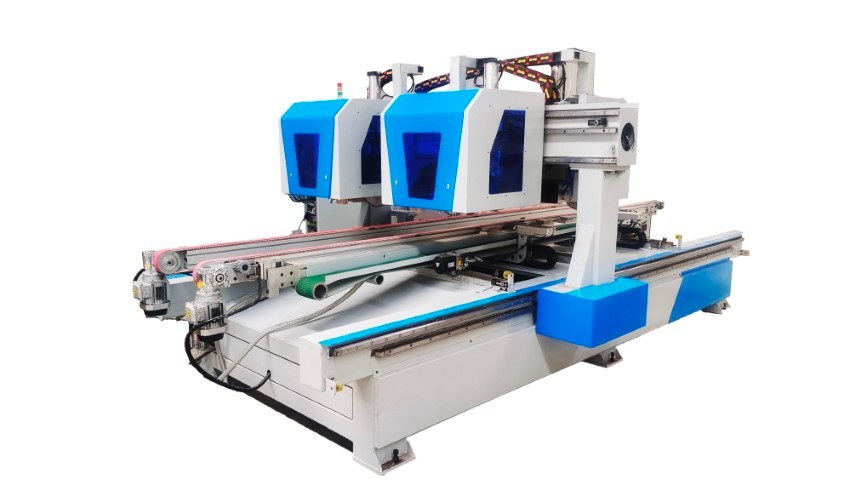

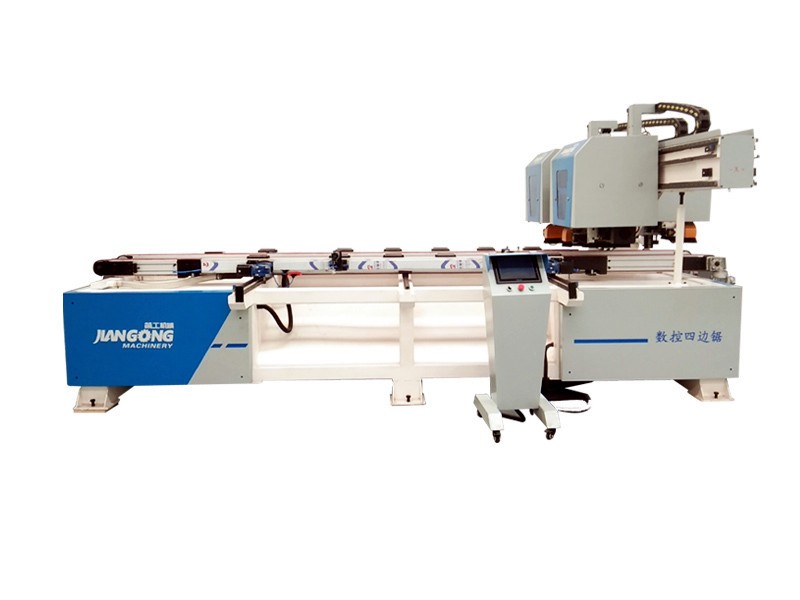

There heads Four Sides Edge Cutting Saw

Category： FLEXIBLE PROCESSING LINE FOR WOODEN DOORS
INQUIRY EMAIL

Automatic CNC four-sided saw is a kind of high-tech automatic wooden door processing equipment.

PERFORMANCE CHARATERISTICS

Automatic CNC four-sided saw is mainly suitable for indoor door four-sided sawing and sizing, so that the wood meets the size requirements, and can drill both sides of the spray painting process holes, high processing precision and fast efficiency.

Automatic CNC four-sided saw can be connected with production optimization software to realize automatic code scanning and unmanned assembly line operation through conveyor belt, effectively improving production efficiency.

Automatic CNC four-sided saw automatic loading and unloading can be tailored according to the needs of the assembly line.

TECHNICAL CHARACTERISTICS

PROJECT NAME	Numerical value
Processing length	2500mm
Processing width	1200mm
Minimum processing width	500mm
Processing thickness	60mm
Main saw power	7.5kwx3
Vice saw power	1.5kwx3
Drilling power	0.75kwx
X axis maximum feed speed	20m/min
Maximum Y-axis feed speed	20n/min
Main saw blade diameter	D300mm-d30mm
Vice saw blade diameter	D120MM-d22mm
Vacuum pump power	3kwx1
Maximum flow	580m3
Maximum negative pressure	-340mbar
Compressed air pressure	0.6~0.8mpa
Host size	4500x2300x2000mm
Table height	950mm
Machine weight	3500kg
Total motor power	35kw
