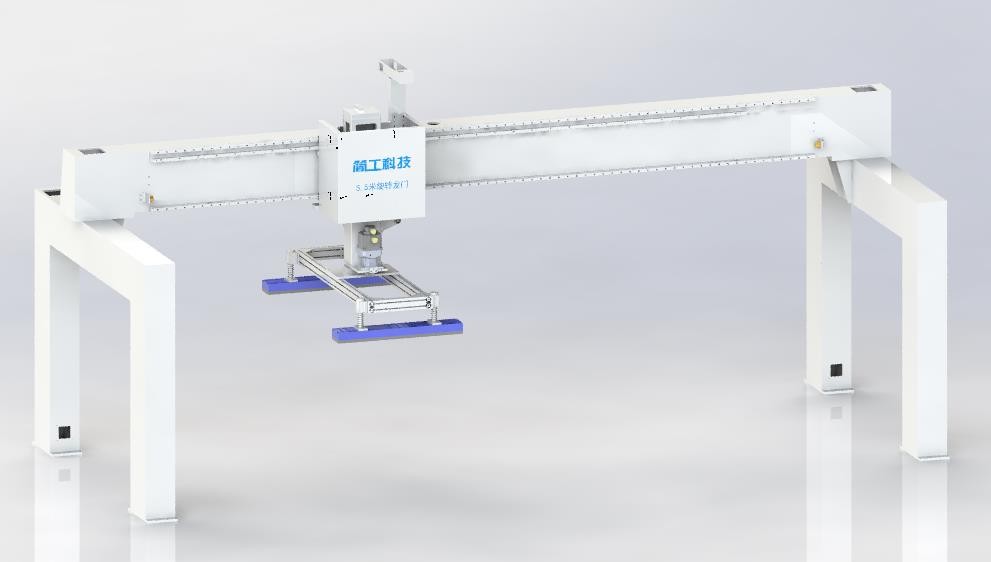

Rotary gantry loading and unloading machine

Category： FLEXIBLE PROCESSING LINE FOR WOODEN DOORS
INQUIRY EMAIL

PERFORMANCE CHARATERISTICS

Mainly through the vacuum suction cup adsorption workpiece surface work, suitable for high-quality surface plate automatic loading and unloading, moving up and down and moving around are using servo motor, gantry type loading and unloading machine is an indispensable supporting equipment in the automatic production of plate furniture manufacturers, fast and stable.

TECHNICAL CHARACTERISTICS

PROJECT NAME	NUMERICAL VALUE
Total motor power	10kw
Standard pressure	0.6~0.8mpa
Lifting distance	100-1500mm
Adsorption width	1-80KG
Adsorption width	400-1200mm
Workpiece length	250-3000mm
Workpiece thickness	10-60mm
Working efficiency	6次/min
Dimensions	600010004500mm
